Bottled Water Production Line
>
Automatic PET Stretch Blow Molding Machine with UV Sterilization for 6L Bottles up to 185mm Diameter

Automatic PET Stretch Blow Molding Machine with UV Sterilization for 6L Bottles up to 185mm Diameter

MOQ: 1
Price: USD 3000~2000000
Packaging Details: wooden box or pallet
Payment Terms: L/C,T/T
Detail Information
Place of Origin:
china
Product Name:
Automatic PET Stretch Blow Molding Machine
Sterilization Method:
UV Sterilization
Service:
Engineer Available To Be Abroad
Maximum Bottle Diameter:
185mm
Suitable Cap:
Plastic Screw Cap
Machine Position:
After Filling Machine
Maximum Bottle Capacity:
6L
Customize:
Available
Application:
Water ,juice
Supply Ability:
30 lines per yea
Highlight:

Blow Molding water bottle packing machine

,

6L water bottle packing machine

,

6L mineral water machinery

Product Description
Mineral Water Bottle Packing Machine PET Stretch Blow Molding Machinery 6L
Advanced Automatic PET Stretch Blow Molding Machine

Our bottle blowing machines are engineered to redefine efficiency across diverse production needs, combining cutting-edge technology with user-centric design.

The flagship automatic PET bottle blowing machine is built for large-scale production lines, boasting a patented structure and industry-leading servo hardware to achieve 5,000-20,000 bottles per hour (BPH). Ideal for mineral water, beverages, and edible oil packaging, it reduces energy consumption by 20% compared to traditional models.

Precision temperature control ensures uniform bottle walls and high transparency, meeting food-grade standards. Equipped with intelligent fault detection, it cuts failure rates by 30%, while key components feature a modular design—routine maintenance takes just 30 minutes.

With corrosion-resistant coatings and high-quality alloys, it delivers 8-10 years of service, maintaining stable 24/7 operation to minimize downtime costs.

Semi-Automatic Model for Small-to-Medium Enterprises

For small-to-medium enterprises and custom production, our semi-automatic model offers flexibility, handling 100ml-2L bottle sizes with quick parameter adjustments—no full mold replacement needed.

Perfect for cosmetic samples, pharmaceutical vials, and spray bottles, it shares the same industrial-grade components as our flagship line, achieving a 99.5% forming success rate. Operating at <65dB, it fits compact workshops.

User-friendly with visual guides, it takes just an hour to master, while daily maintenance (cleaning heating tubes, checking pressure) cuts costs by 40%. It uses only 8-12 kWh/day, making it ideal for startups and small-batch trials.

Custom HDPE/PLA Models for Specialized Applications

Custom HDPE/PLA models cater to the chemical, medical and eco-friendly industries. Aseptic HDPE equipment for medical use is equipped with fully enclosed chambers and UV disinfection systems, complying with GMP standards.

PLA biodegradable bottle machines use specialized heating curves to prevent brittleness, producing EU-compliant eco-friendly bottles. All custom units integrate upgraded hardware (corrosion/heat-resistant steel) and software compatible with MES systems, ensuring material adaptability and data traceability.

They run stably for 3,000+ hours non-stop, backed by one-on-one technical support from design to line commissioning.

Technical Specifications
Series/Model Gseries LXG-6-40 LXG-7-40 LXG-9-40 LXG-6/2-40 LXG-8/2-40 LXG-4/5-60 LXG-2/10-60 LXG-1/15-80 LXG-2/15-80 LXG-1/20-90
(L) Maximum bottle capacity 0.75 0.75 0.75 2 2 6 12 15 15 20
(MM) Maximum bottle diameter Φ72 Φ72 Φ72 Φ110 Φ110 Φ185 Φ215 Φ250 Φ250 Φ290
(MM) Maximum bottle height 250/350(1.5L) 250/350(1.5L) 250/350(1.5L) 350 350 380 420 450 460 500
Number of heating units* 4 4 8 4 4 6 6 4 6 4
Designed production capacity(bph) 14000(0.5L) 15000(0.5L) 20000(0.5L) 9000(1.5L) 12000(1.5L) 4000(5L) 1800(10L) 1000(15L) 1500(15L) 800(20L)
Number of mold cavities 6 7 9 6 8 4 2 1 2 1
(m³/min) HP air consumption 6 8 10 9 12 12 10 5 13 8
(KW) Installation power 85 85 156 85 85 116 116 145 205 145
(KW) Service power 32 32 45 40 40 45 45 35 50 50
Product Images

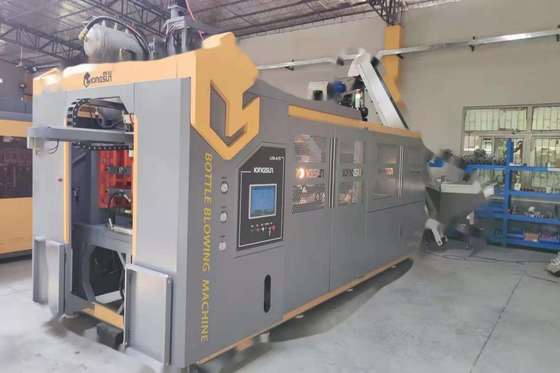

Automatic PET Stretch Blow Molding Machine with UV Sterilization for 6L Bottles up to 185mm Diameter 0

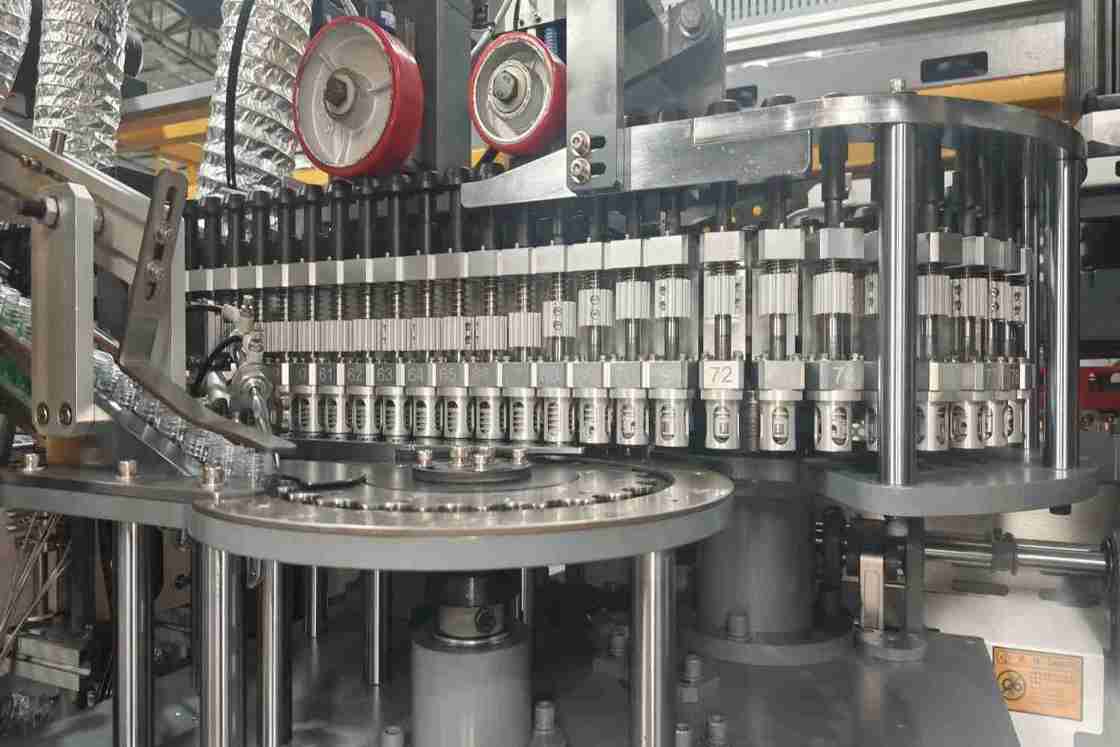

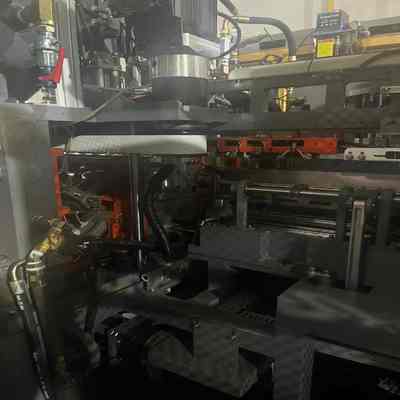

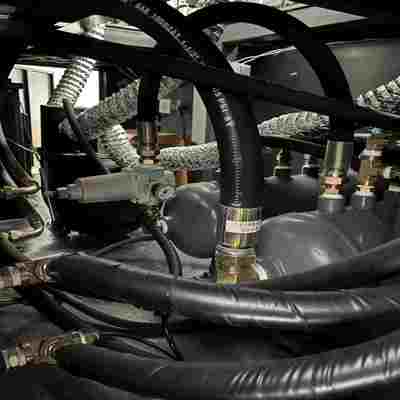

Automatic PET Stretch Blow Molding Machine with UV Sterilization for 6L Bottles up to 185mm Diameter 1 Automatic PET Stretch Blow Molding Machine with UV Sterilization for 6L Bottles up to 185mm Diameter 2 Automatic PET Stretch Blow Molding Machine with UV Sterilization for 6L Bottles up to 185mm Diameter 3
